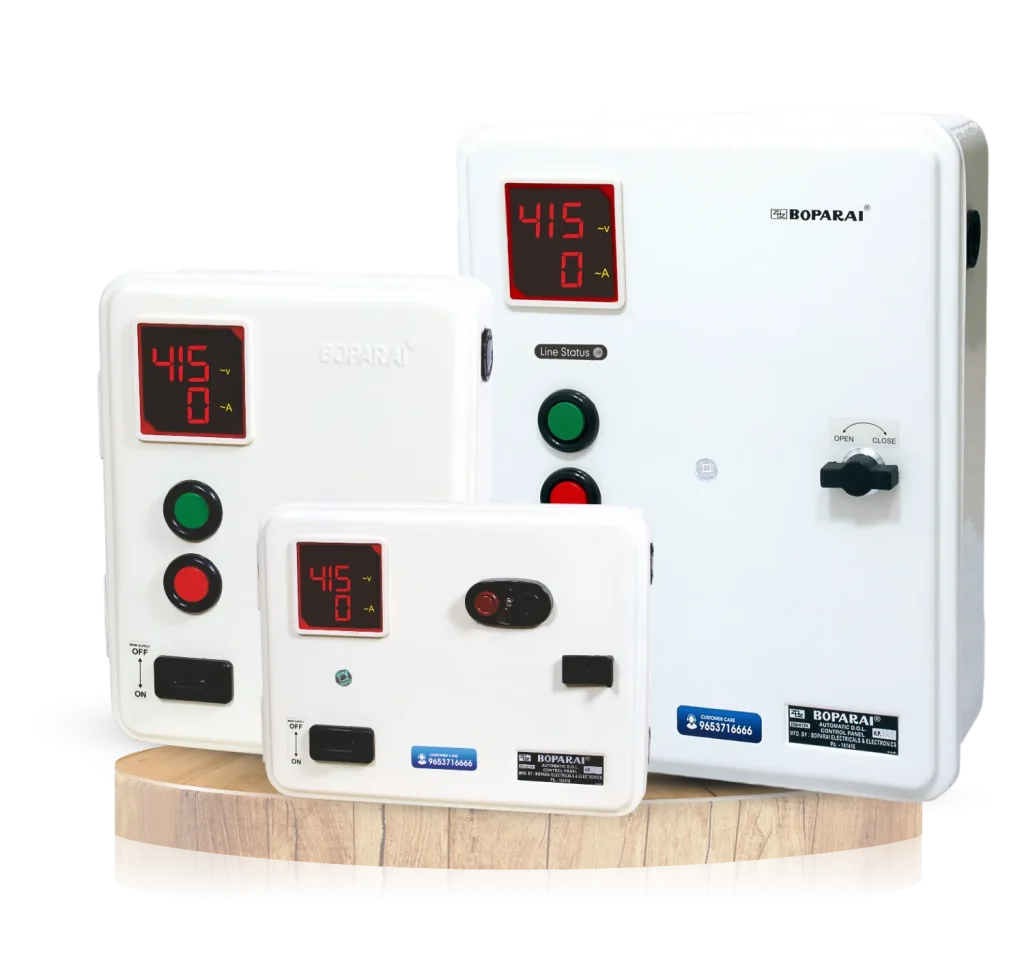

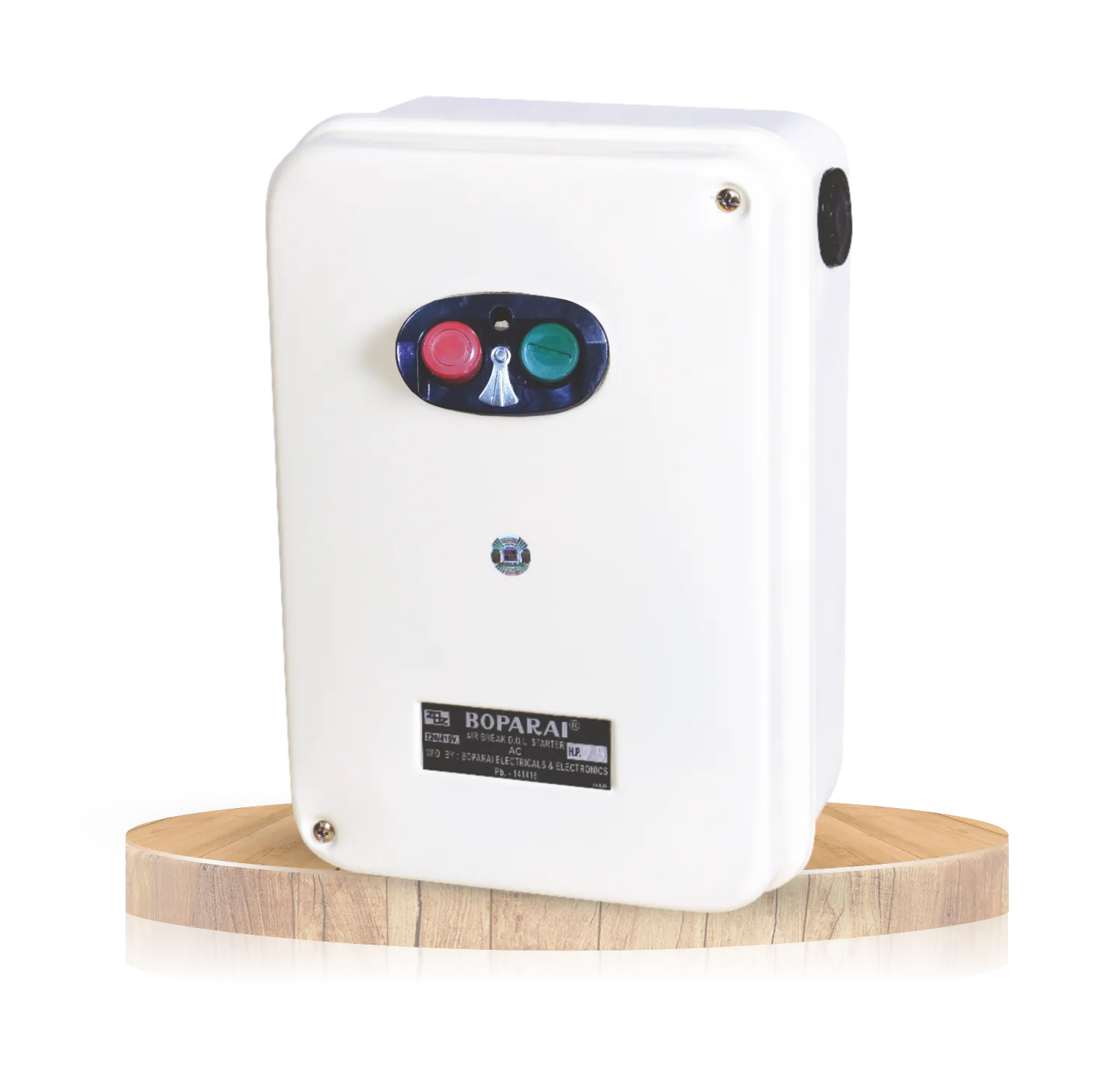

DOL Panel

Direct On-Line Control Panels are used for switching three-phase AC Motors/Submersible pumps up to 20 HP at 415V AC. A direct on line panel can be used if the high inrush current of the motor does not cause excessive voltage drop in the supply circuit.

Salient Features

Digital Voltage and Ampere Meter.
Protects motor from running in Two Phases.
Protects motor against reverse running.
Overloading Protection with its most accurate thermal Bi-Metallic Overload relay.
Startup delay timer.
Protects motor against Unbalanced voltages.
Automatically starts the motor in healthy conditions.
